Activiti 用户手册

1
2
3
<bean id="dataSource" class="org.springframework.jndi.JndiObjectFactoryBean">
    <property name="jndiName" value="java:comp/env/jdbc/activitiDB"/>
</bean>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
<Context antiJARLocking="true" path="/activiti-explorer2">
    <Resource auth="Container"
              name="jdbc/activitiDB"
              type="javax.sql.DataSource"
              scope="Shareable"
              description="JDBC DataSource"
              url="jdbc:h2:mem:activiti;DB_CLOSE_DELAY=1000"
              driverClassName="org.h2.Driver"
              username="sa"
              password=""
              defaultAutoCommit="false"
              initialSize="5"
              maxWait="5000"
              maxActive="120"
              maxIdle="5"/>
</Context>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
<?xml version="1.0" encoding="UTF-8"?>
<Context antiJARLocking="true" path="/activiti-rest2">
    <Resource auth="Container"
              name="jdbc/activitiDB"
              type="javax.sql.DataSource"
              scope="Shareable"
              description="JDBC DataSource"
              url="jdbc:h2:mem:activiti;DB_CLOSE_DELAY=-1"
              driverClassName="org.h2.Driver"
              username="sa"
              password=""
              defaultAutoCommit="false"
              initialSize="5"
              maxWait="5000"
              maxActive="120"
              maxIdle="5"/>
</Context>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
<?xml version="1.0" encoding="UTF-8"?>
    <Context antiJARLocking="true" path="/activiti-explorer2">
        <Resource auth="Container"
            name="jdbc/activitiDB"
            type="javax.sql.DataSource"
            description="JDBC DataSource"
            url="jdbc:mysql://localhost:3306/activiti"
            driverClassName="com.mysql.jdbc.Driver"
            username="sa"
            password=""
            defaultAutoCommit="false"
            initialSize="5"
            maxWait="5000"
            maxActive="120"
            maxIdle="5"/>
        </Context>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public class MyEventListener implements ActivitiEventListener {

  @Override
  public void onEvent(ActivitiEvent event) {
    switch (event.getType()) {

      case JOB_EXECUTION_SUCCESS:
        System.out.println("A job well done!");
        break;

      case JOB_EXECUTION_FAILURE:
        System.out.println("A job has failed...");
        break;

      default:
        System.out.println("Event received: " + event.getType());
    }
  }

  @Override
  public boolean isFailOnException() {
    // onEvent方法中的逻辑并不重要，日志失败异常可以被忽略……
    return false;
  }
}

1
2
3
4
5
6
7
8
<bean id="processEngineConfiguration" class="org.activiti.engine.impl.cfg.StandaloneProcessEngineConfiguration">
    ...
    <property name="eventListeners">
      <list>
         <bean class="org.activiti.engine.example.MyEventListener" />
      </list>
    </property>
</bean>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
<bean id="processEngineConfiguration" class="org.activiti.engine.impl.cfg.StandaloneProcessEngineConfiguration">
    ...
    <property name="typedEventListeners">
      <map>
        <entry key="JOB_EXECUTION_SUCCESS,JOB_EXECUTION_FAILURE" >
          <list>
            <bean class="org.activiti.engine.example.MyJobEventListener" />
          </list>
        </entry>
      </map>
    </property>
</bean>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
/**
 * 新增一个监听器，分发器会在所有事件分发时通知。
 * @param listenerToAdd 要新增的监听器
 */
void addEventListener(ActivitiEventListener listenerToAdd);

/**
 * 新增一个监听器，在给定类型的事件发生时被通知。
 * @param listenerToAdd 要新增的监听器
 * @param types 监听器需要监听的事件类型
 */
void addEventListener(ActivitiEventListener listenerToAdd, ActivitiEventType... types);

/**
 * 从分发器中移除给定监听器。该监听器不再被通知，无论该监听器注册为监听何种类型。
 * @param listenerToRemove 要移除的监听器
 */
 void removeEventListener(ActivitiEventListener listenerToRemove);

1
2
3
4
5
6
7
8
/**
 * 将给定事件分发给所有注册监听器。
 * @param event 要分发的事件。
 *
 * @throws ActivitiException 当分发事件发生异常，或者{@link ActivitiEventDispatcher}被禁用。
 * @throws ActivitiIllegalArgumentException 当给定事件不可分发
 */
 void dispatchEvent(ActivitiEvent event);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
<?xml version="1.0" encoding="UTF-8" ?>
<definitions id="definitions"
             targetNamespace="http://activiti.org/bpmn20"
             xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xmlns:activiti="http://activiti.org/bpmn">

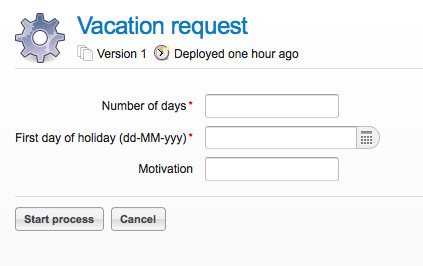

  <process id="vacationRequest" name="Vacation request">

    <startEvent id="request" activiti:initiator="employeeName">
      <extensionElements>
        <activiti:formProperty id="numberOfDays" name="Number of days" type="long" value="1" required="true"/>
        <activiti:formProperty id="startDate" name="First day of holiday (dd-MM-yyy)" datePattern="dd-MM-yyyy hh:mm" type="date" required="true" />
        <activiti:formProperty id="vacationMotivation" name="Motivation" type="string" />
      </extensionElements>
    </startEvent>
    <sequenceFlow id="flow1" sourceRef="request" targetRef="handleRequest" />

    <userTask id="handleRequest" name="Handle vacation request" >
      <documentation>
        ${employeeName} would like to take ${numberOfDays} day(s) of vacation (Motivation: ${vacationMotivation}).
      </documentation>
      <extensionElements>
         <activiti:formProperty id="vacationApproved" name="Do you approve this vacation" type="enum" required="true">
          <activiti:value id="true" name="Approve" />
          <activiti:value id="false" name="Reject" />
        </activiti:formProperty>
        <activiti:formProperty id="managerMotivation" name="Motivation" type="string" />
      </extensionElements>
      <potentialOwner>
        <resourceAssignmentExpression>
          <formalExpression>management</formalExpression>
        </resourceAssignmentExpression>
      </potentialOwner>
    </userTask>
    <sequenceFlow id="flow2" sourceRef="handleRequest" targetRef="requestApprovedDecision" />

    <exclusiveGateway id="requestApprovedDecision" name="Request approved?" />
    <sequenceFlow id="flow3" sourceRef="requestApprovedDecision" targetRef="sendApprovalMail">
      <conditionExpression xsi:type="tFormalExpression">${vacationApproved == 'true'}</conditionExpression>
    </sequenceFlow>

    <task id="sendApprovalMail" name="Send confirmation e-mail" />
    <sequenceFlow id="flow4" sourceRef="sendApprovalMail" targetRef="theEnd1" />
    <endEvent id="theEnd1" />

    <sequenceFlow id="flow5" sourceRef="requestApprovedDecision" targetRef="adjustVacationRequestTask">
      <conditionExpression xsi:type="tFormalExpression">${vacationApproved == 'false'}</conditionExpression>
    </sequenceFlow>

    <userTask id="adjustVacationRequestTask" name="Adjust vacation request">
      <documentation>
        Your manager has disapproved your vacation request for ${numberOfDays} days.
        Reason: ${managerMotivation}
      </documentation>
      <extensionElements>
        <activiti:formProperty id="numberOfDays" name="Number of days" value="${numberOfDays}" type="long" required="true"/>
        <activiti:formProperty id="startDate" name="First day of holiday (dd-MM-yyy)" value="${startDate}" datePattern="dd-MM-yyyy hh:mm" type="date" required="true" />
        <activiti:formProperty id="vacationMotivation" name="Motivation" value="${vacationMotivation}" type="string" />
        <activiti:formProperty id="resendRequest" name="Resend vacation request to manager?" type="enum" required="true">
          <activiti:value id="true" name="Yes" />
          <activiti:value id="false" name="No" />
        </activiti:formProperty>
      </extensionElements>
      <humanPerformer>
        <resourceAssignmentExpression>
          <formalExpression>${employeeName}</formalExpression>
        </resourceAssignmentExpression>
      </humanPerformer>
    </userTask>
    <sequenceFlow id="flow6" sourceRef="adjustVacationRequestTask" targetRef="resendRequestDecision" />

    <exclusiveGateway id="resendRequestDecision" name="Resend request?" />
    <sequenceFlow id="flow7" sourceRef="resendRequestDecision" targetRef="handleRequest">
      <conditionExpression xsi:type="tFormalExpression">${resendRequest == 'true'}</conditionExpression>
    </sequenceFlow>

     <sequenceFlow id="flow8" sourceRef="resendRequestDecision" targetRef="theEnd2">
      <conditionExpression xsi:type="tFormalExpression">${resendRequest == 'false'}</conditionExpression>
    </sequenceFlow>
    <endEvent id="theEnd2" />

  </process>

</definitions>

1
2
3
4
5
6
7
ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();
RepositoryService repositoryService = processEngine.getRepositoryService();
repositoryService.createDeployment()
  .addClasspathResource("org/activiti/test/VacationRequest.bpmn20.xml")
  .deploy();

Log.info("Number of process definitions: " + repositoryService.createProcessDefinitionQuery().count());

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
Map<String, Object> variables = new HashMap<String, Object>();
variables.put("employeeName", "Kermit");
variables.put("numberOfDays", new Integer(4));
variables.put("vacationMotivation", "I'm really tired!");

RuntimeService runtimeService = processEngine.getRuntimeService();
ProcessInstance processInstance = runtimeService.startProcessInstanceByKey("vacationRequest", variables);

// Verify that we started a new process instance
Log.info("Number of process instances: " + runtimeService.createProcessInstanceQuery().count());

1
2
3
4
5
6
// 获取management组的所有任务
TaskService taskService = processEngine.getTaskService();
List<Task> tasks = taskService.createTaskQuery().taskCandidateGroup("management").list();
for (Task task : tasks) {
  Log.info("Task available: " + task.getName());
}

1
2
3
4
5
6
Task task = tasks.get(0);

Map<String, Object> taskVariables = new HashMap<String, Object>();
taskVariables.put("vacationApproved", "false");
taskVariables.put("managerMotivation", "We have a tight deadline!");
taskService.complete(task.getId(), taskVariables);

1
2
3
4
5
6
repositoryService.suspendProcessDefinitionByKey("vacationRequest");
try {
  runtimeService.startProcessInstanceByKey("vacationRequest");
} catch (ActivitiException e) {
  e.printStackTrace();
}

1
2
3
4
5
<dependency>
	<groupId>org.activiti</groupId>
	<artifactId>activiti-spring-boot-starter-basic</artifactId>
	<version>${activiti.version}</version>
</dependency>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

@Configuration
@ComponentScan
@EnableAutoConfiguration
public class MyApplication {

    public static void main(String[] args) {
        SpringApplication.run(MyApplication.class, args);
    }

}

1
2
3
4
5
<dependency>
	<groupId>com.h2database</groupId>
	<artifactId>h2</artifactId>
	<version>1.4.183</version>
</dependency>

  .   ____          _            __ _ _
 /\\ / ___'_ __ _ _(_)_ __  __ _ \ \ \ \
( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
 \\/  ___)| |_)| | | | | || (_| |  ) ) ) )
  '  |____| .__|_| |_|_| |_\__, | / / / /
 =========|_|==============|___/=/_/_/_/
 :: Spring Boot ::        (v1.1.6.RELEASE)

MyApplication                            : Starting MyApplication on ...
s.c.a.AnnotationConfigApplicationContext : Refreshing
org.springframework.context.annotation.AnnotationConfigApplicationContext@33cb5951:
 startup date [Wed Dec 17 15:24:34 CET 2014]; root of context hierarchy
a.s.b.AbstractProcessEngineConfiguration : No process definitions were
found using the specified path (classpath:/processes/**.bpmn20.xml).
o.activiti.engine.impl.db.DbSqlSession   : performing create on engine
with resource org/activiti/db/create/activiti.h2.create.engine.sql
o.activiti.engine.impl.db.DbSqlSession   : performing create on history
with resource org/activiti/db/create/activiti.h2.create.history.sql
o.activiti.engine.impl.db.DbSqlSession   : performing create on identity
 with resource org/activiti/db/create/activiti.h2.create.identity.sql
o.a.engine.impl.ProcessEngineImpl        : ProcessEngine default created
o.a.e.i.a.DefaultAsyncJobExecutor        : Starting up the default async
 job executor [org.activiti.spring.SpringAsyncExecutor].
o.a.e.i.a.AcquireTimerJobsRunnable       : {} starting to acquire async
jobs due
o.a.e.i.a.AcquireAsyncJobsDueRunnable    : {} starting to acquire async
jobs due
o.s.j.e.a.AnnotationMBeanExporter        : Registering beans for JMX
exposure on startup
MyApplication                            : Started MyApplication in
2.019 seconds (JVM running for 2.294)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
<?xml version="1.0" encoding="UTF-8"?>
<definitions
        xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"
        xmlns:activiti="http://activiti.org/bpmn"
        targetNamespace="Examples">

    <process id="oneTaskProcess" name="The One Task Process">
        <startEvent id="theStart" />
        <sequenceFlow id="flow1" sourceRef="theStart" targetRef="theTask" />
        <userTask id="theTask" name="my task" />
        <sequenceFlow id="flow2" sourceRef="theTask" targetRef="theEnd" />
        <endEvent id="theEnd" />
    </process>

</definitions>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
@Configuration
@ComponentScan
@EnableAutoConfiguration
public class MyApplication {

    public static void main(String[] args) {
        SpringApplication.run(MyApplication.class, args);
    }

    @Bean
    public CommandLineRunner init(final RepositoryService repositoryService,
                                  final RuntimeService runtimeService,
                                  final TaskService taskService) {

        return new CommandLineRunner() {
            @Override
            public void run(String... strings) throws Exception {
                System.out.println("Number of process definitions : "
                	+ repositoryService.createProcessDefinitionQuery().count());
                System.out.println("Number of tasks : " + taskService.createTaskQuery().count());
                runtimeService.startProcessInstanceByKey("oneTaskProcess");
                System.out.println("Number of tasks after process start: " + taskService.createTaskQuery().count());
            }
        };

    }

}

Number of process definitions : 1
Number of tasks : 0
Number of tasks after process start : 1

1
2
3
4
5
6
7
8
9
@Bean
public DataSource database() {
    return DataSourceBuilder.create()
        .url("jdbc:mysql://127.0.0.1:3306/activiti-spring-boot?characterEncoding=UTF-8")
        .username("alfresco")
        .password("alfresco")
        .driverClassName("com.mysql.jdbc.Driver")
        .build();
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
<dependency>
	<groupId>mysql</groupId>
	<artifactId>mysql-connector-java</artifactId>
	<version>5.1.34</version>
</dependency>
<dependency>
	<groupId>org.apache.tomcat</groupId>
	<artifactId>tomcat-jdbc</artifactId>
	<version>8.0.15</version>
</dependency>

org.activiti.engine.impl.db.DbSqlSession   : performing create on
engine with resource
org/activiti/db/create/activiti.mysql.create.engine.sql
org.activiti.engine.impl.db.DbSqlSession   : performing create on
history with resource
org/activiti/db/create/activiti.mysql.create.history.sql
org.activiti.engine.impl.db.DbSqlSession   : performing create on
identity with resource
org/activiti/db/create/activiti.mysql.create.identity.sql

1
2
3
4
5
<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-web</artifactId>
	<version>${spring.boot.version}</version>
</dependency>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
@Service
public class MyService {

    @Autowired
    private RuntimeService runtimeService;

    @Autowired
    private TaskService taskService;

	@Transactional
    public void startProcess() {
        runtimeService.startProcessInstanceByKey("oneTaskProcess");
    }

	@Transactional
    public List<Task> getTasks(String assignee) {
        return taskService.createTaskQuery().taskAssignee(assignee).list();
    }

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
@RestController
public class MyRestController {

    @Autowired
    private MyService myService;

    @RequestMapping(value="/process", method= RequestMethod.POST)
    public void startProcessInstance() {
        myService.startProcess();
    }

    @RequestMapping(value="/tasks", method= RequestMethod.GET, produces=MediaType.APPLICATION_JSON_VALUE)
    public List<TaskRepresentation> getTasks(@RequestParam String assignee) {
        List<Task> tasks = myService.getTasks(assignee);
        List<TaskRepresentation> dtos = new ArrayList<TaskRepresentation>();
        for (Task task : tasks) {
            dtos.add(new TaskRepresentation(task.getId(), task.getName()));
        }
        return dtos;
    }

    static class TaskRepresentation {

        private String id;
        private String name;

        public TaskRepresentation(String id, String name) {
            this.id = id;
            this.name = name;
        }

         public String getId() {
            return id;
        }
        public void setId(String id) {
            this.id = id;
        }
        public String getName() {
            return name;
        }
        public void setName(String name) {
            this.name = name;
        }

    }

}

curl http://localhost:8080/tasks?assignee=kermit
[]

curl -X POST  http://localhost:8080/process
curl http://localhost:8080/tasks?assignee=kermit
[{"id":"10004","name":"my task"}]

1
2
3
4
5
<dependency>
	<groupId>org.activiti</groupId>
	<artifactId>activiti-spring-boot-starter-jpa</artifactId>
	<version>${activiti.version}</version>
</dependency>

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
@Entity
class Person {

    @Id
    @GeneratedValue
    private Long id;

    private String username;

    private String firstName;

    private String lastName;

    private Date birthDate;

    public Person() {
    }

    public Person(String username, String firstName, String lastName, Date birthDate) {
        this.username = username;
        this.firstName = firstName;
        this.lastName = lastName;
        this.birthDate = birthDate;
    }

    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public Date getBirthDate() {
        return birthDate;
    }

    public void setBirthDate(Date birthDate) {
        this.birthDate = birthDate;
    }
}

spring.jpa.hibernate.ddl-auto=update

1
2
3
4
5
public interface PersonRepository extends JpaRepository<Person, Long> {

    Person findByUsername(String username);

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
@Service
@Transactional
public class MyService {

    @Autowired
    private RuntimeService runtimeService;

    @Autowired
    private TaskService taskService;

    @Autowired
    private PersonRepository personRepository;

    public void startProcess(String assignee) {

        Person person = personRepository.findByUsername(assignee);

        Map<String, Object> variables = new HashMap<String, Object>();
        variables.put("person", person);
        runtimeService.startProcessInstanceByKey("oneTaskProcess", variables);
    }

    public List<Task> getTasks(String assignee) {
        return taskService.createTaskQuery().taskAssignee(assignee).list();
    }

    public void createDemoUsers() {
		 if (personRepository.findAll().size() == 0) {
            personRepository.save(new Person("jbarrez", "Joram", "Barrez", new Date()));
            personRepository.save(new Person("trademakers", "Tijs", "Rademakers", new Date()));
        }
    }

}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
@Bean
public CommandLineRunner init(final MyService myService) {

	return new CommandLineRunner() {
    	public void run(String... strings) throws Exception {
        	myService.createDemoUsers();
        }
    };

}

@RestController
public class MyRestController {

    @Autowired
    private MyService myService;

    @RequestMapping(value="/process", method= RequestMethod.POST)
    public void startProcessInstance(@RequestBody StartProcessRepresentation startProcessRepresentation) {
        myService.startProcess(startProcessRepresentation.getAssignee());
    }

   ...

    static class StartProcessRepresentation {

        private String assignee;

        public String getAssignee() {
            return assignee;
        }

        public void setAssignee(String assignee) {
            this.assignee = assignee;
        }
    }

1
<userTask id="theTask" name="my task" activiti:assignee="${person.id}"/>

curl -H "Content-Type: application/json" -d '{"assignee" : "jbarrez"}' http://localhost:8080/process

curl http://localhost:8080/tasks?assignee=1

[{"id":"12505","name":"my task"}]

1
2
3
4
5
6
7
String barFileName = "path/to/process-one.bar";
ZipInputStream inputStream = new ZipInputStream(new FileInputStream(barFileName));

repositoryService.createDeployment()
    .name("process-one.bar")
    .addZipInputStream(inputStream)
    .deploy();

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
<definitions id="definitions"
  targetNamespace="http://activiti.org/bpmn20"
  xmlns:activiti="http://activiti.org/bpmn"
  xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL">

	<process id="financialReport" name="Monthly financial report reminder process">

	  <startEvent id="theStart" />

	  <sequenceFlow id='flow1' sourceRef='theStart' targetRef='writeReportTask' />

	  <userTask id="writeReportTask" name="Write monthly financial report" >
	    <documentation>
	      Write monthly financial report for publication to shareholders.
	    </documentation>
	    <potentialOwner>
	      <resourceAssignmentExpression>
	        <formalExpression>accountancy</formalExpression>
	      </resourceAssignmentExpression>
	    </potentialOwner>
	  </userTask>

	  <sequenceFlow id='flow2' sourceRef='writeReportTask' targetRef='verifyReportTask' />

	  <userTask id="verifyReportTask" name="Verify monthly financial report" >
	    <documentation>
	      Verify monthly financial report composed by the accountancy department.
	      This financial report is going to be sent to all the company shareholders.
	    </documentation>
	    <potentialOwner>
	      <resourceAssignmentExpression>
	        <formalExpression>management</formalExpression>
	      </resourceAssignmentExpression>
	    </potentialOwner>
	  </userTask>

	  <sequenceFlow id='flow3' sourceRef='verifyReportTask' targetRef='theEnd' />

	  <endEvent id="theEnd" />

	</process>

</definitions>
